Description
Specifications
-

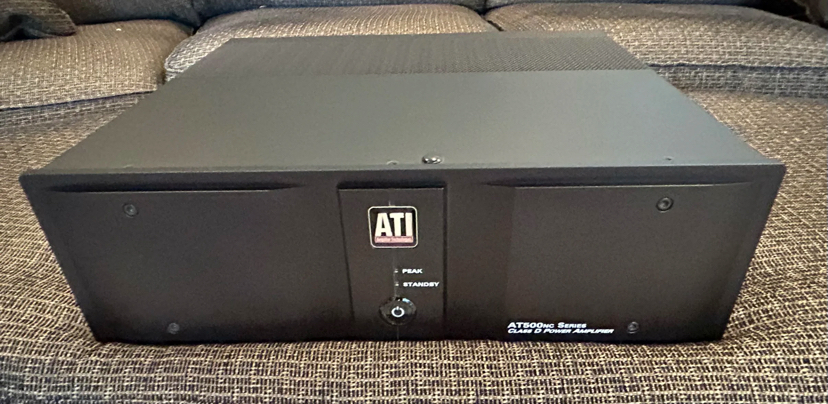

Model: ATI AT528NC (8-channel, AT52X NC Series)
wwsp.com+1 -
Amplifier Type: Hypex N-Core® Class-D modules with ATI-designed custom gain stage and linear power supply
ati-amp.com -
Power Output:
-
200 W RMS per channel into 8 Ω
-
300 W per channel into 4 Ω wwsp.com+1soundapproach.com
-
-
Channels: 8 fixed; non-upgradable configuration wwsp.com+1
-
Soft-Start & Auto Voltage Recognition: Automatically detects and configures for 117 V or 230 V; includes soft-start microprocessor control wwsp.com
-
Sleep Mode: Enters low-power standby after ~10 minutes of no input; LED flashes and instantly resumes on signal wwsp.com
-
Distortion & Noise: <0.05% THD; S/N ratio approx. 123 dB (ref. rated output) wwsp.comaudioholics.com
-

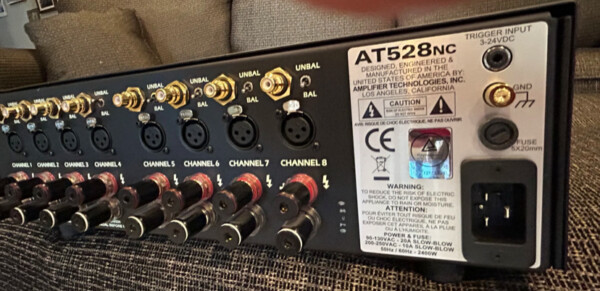

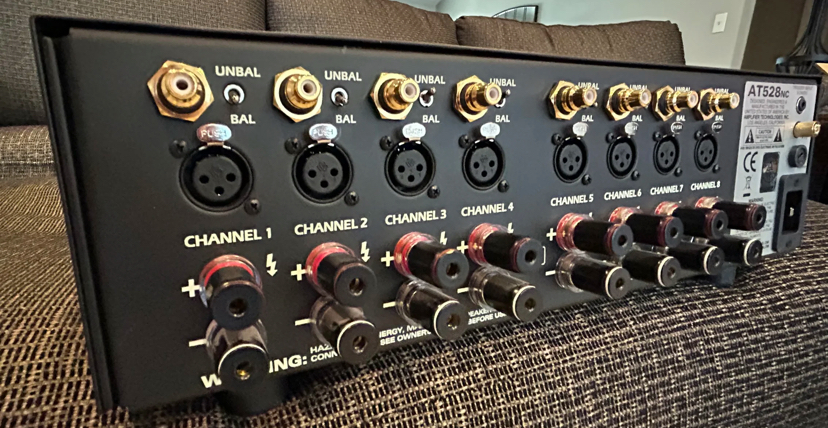

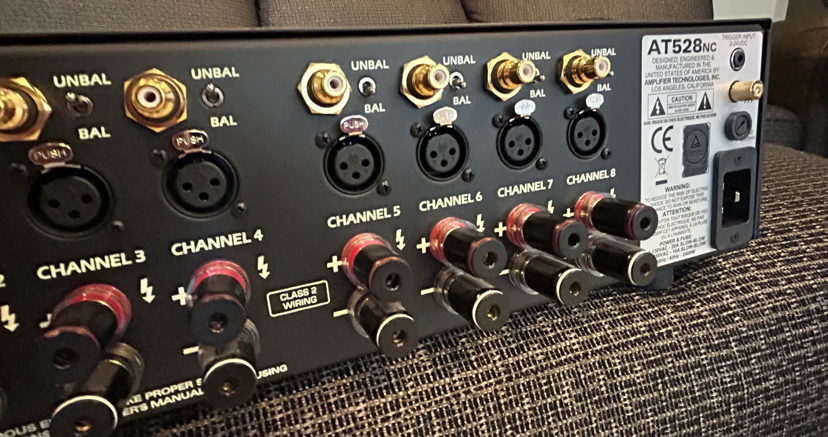

Input/Output Connectors:
-
RCA (unbalanced) and XLR (balanced) inputs with selection switch
-
Gold-plated 5-way binding posts for outputs
-
1/8″ mono jack for +12 V trigger, chassis ground lug, fuse holder, IEC 20 A inlet for detachable AC cord ati-amp.comwwsp.com
-
-
Transformers & Protection: High-current toroidal transformers with dual windings; optically-coupled protection circuits with full automatic reset ati-amp.comaudioholics.com
-

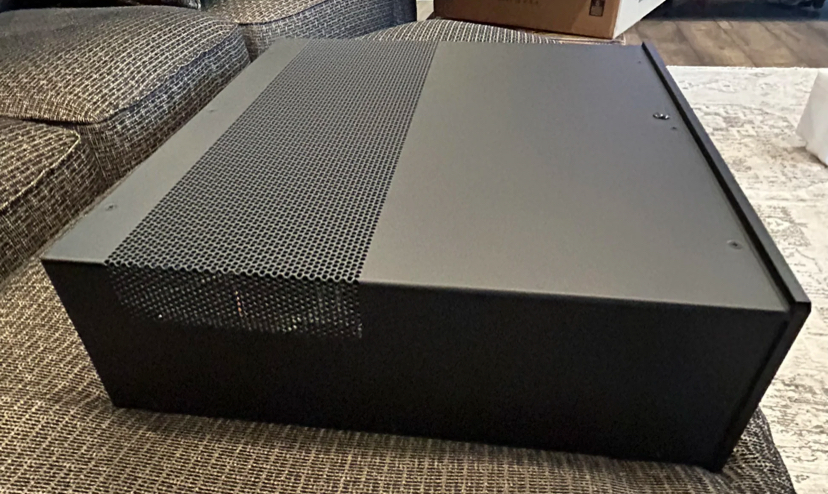

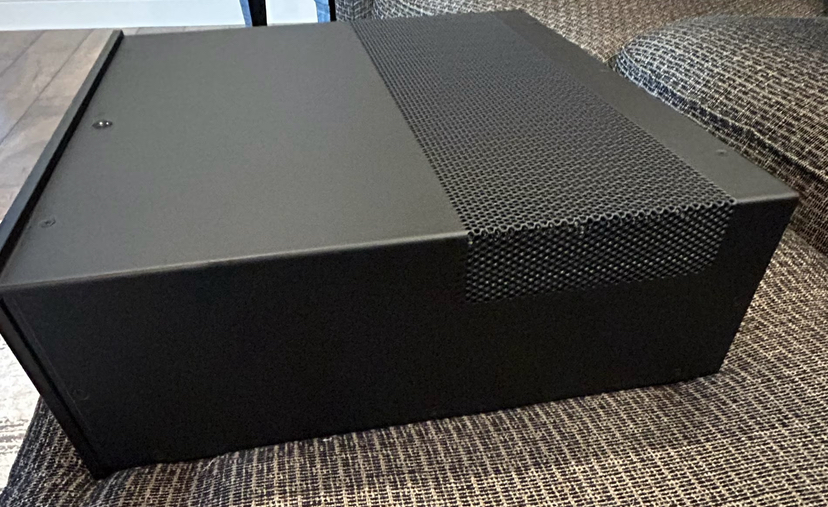

Chassis: 3 RU rackmount (17″ × 6″ × 15.5″); weight approx. 39–65 lb depending on channel count (8-channel version near top end) ati-amp.comaudioholics.com
-
Warranty: Originally comes with ATI’s 7-year transferable warranty ati-amp.comaudioholics.co
